How to setup L2TP VPN on Windows 10

Here you will find a detailed guide for setting up VPN connection by L2TP protocol on Windows 10 operating system. All you need is to repeat the following steps in your system. Simply complete all the actions as shown in the pictures.

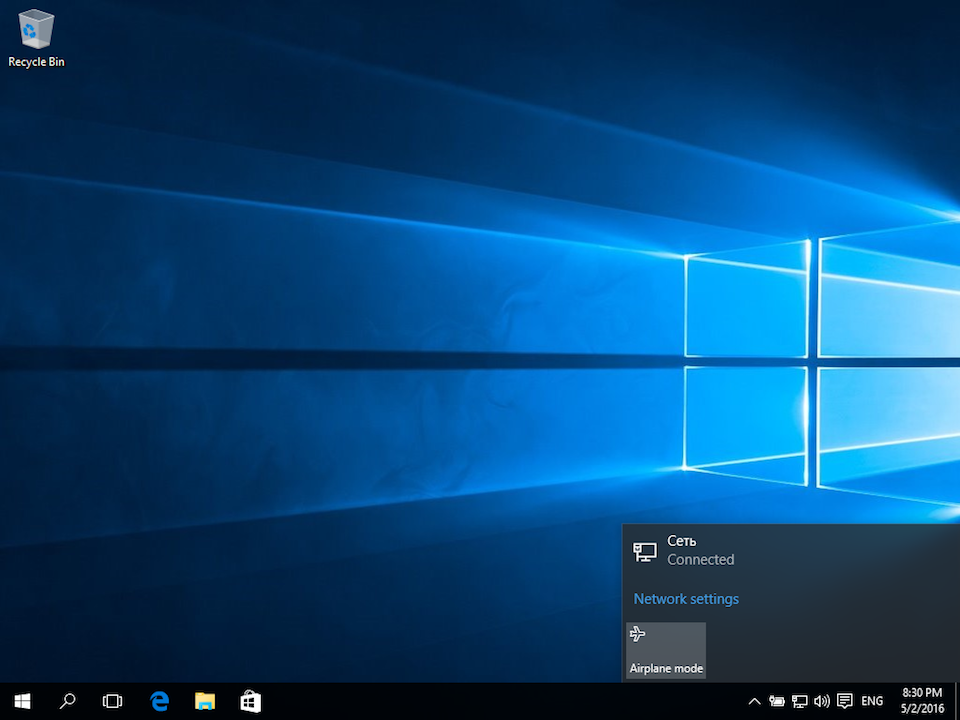

1

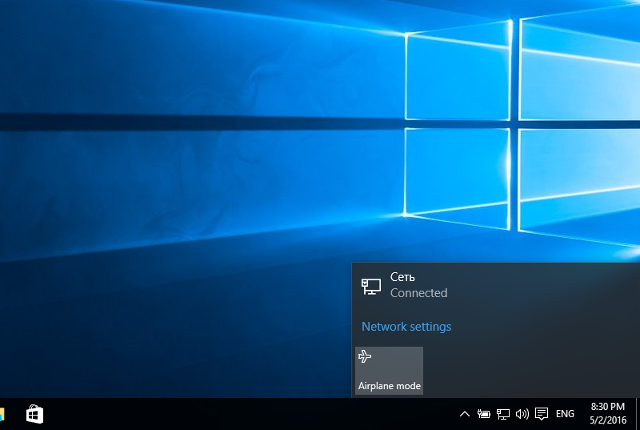

Right click on your Lan / Wi-Fi icon from system tray and click on Network settings.
Next
Setting up L2TP VPN on Windows 10, step 1 Setting up L2TP VPN on Windows 10, step 1

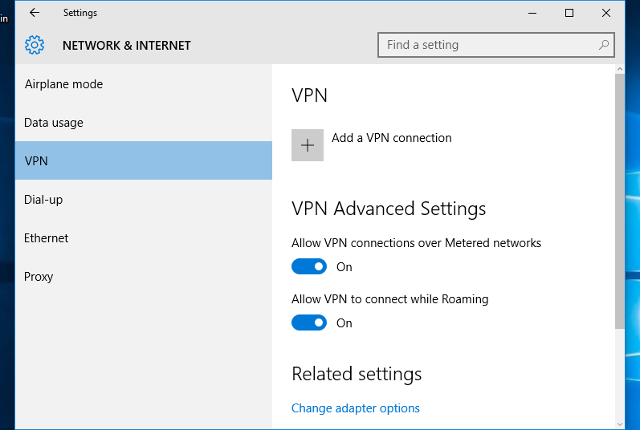

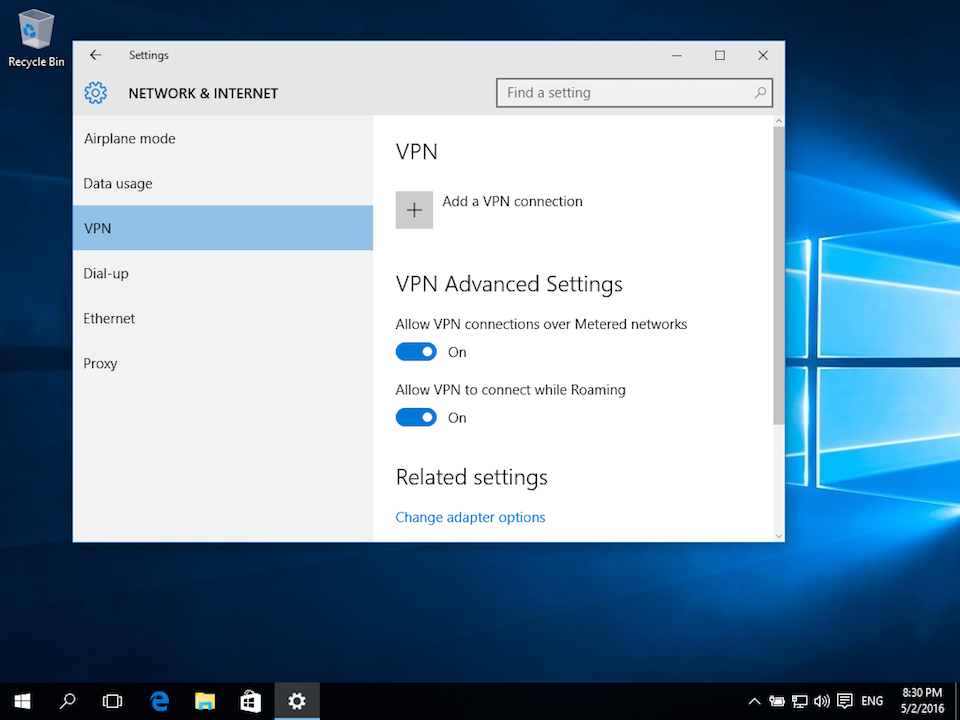

2
Choose VPN and click on Add a VPN-connection.
Next
Setting up L2TP VPN on Windows 10, step 2 Setting up L2TP VPN on Windows 10, step 2
3
Insert the following settings:
Next
Setting up L2TP VPN on Windows 10, step 3 Setting up L2TP VPN on Windows 10, step 3

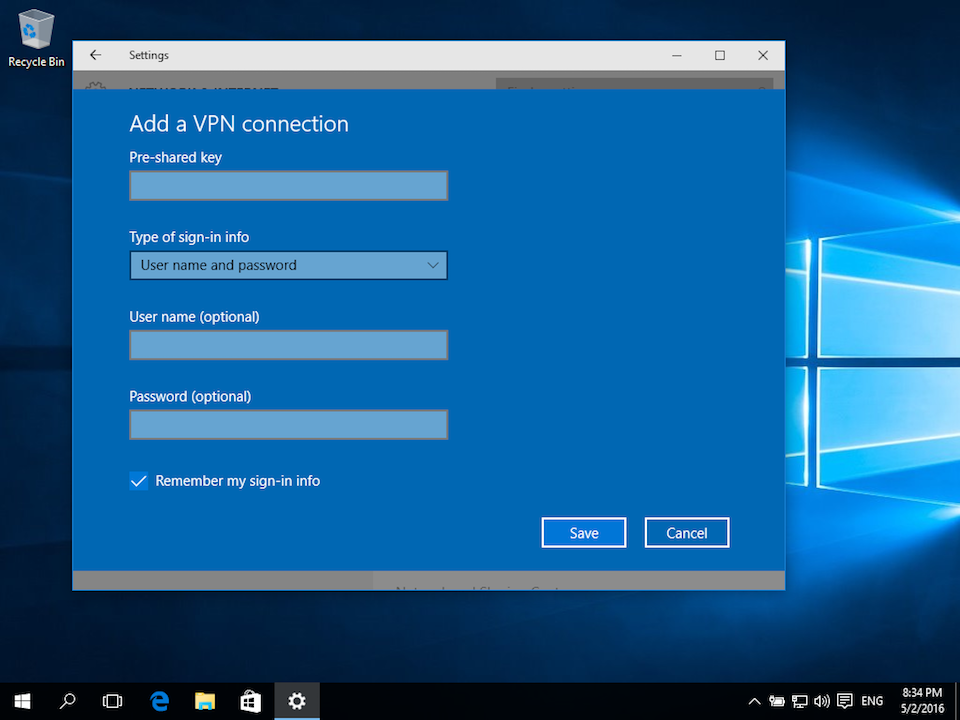

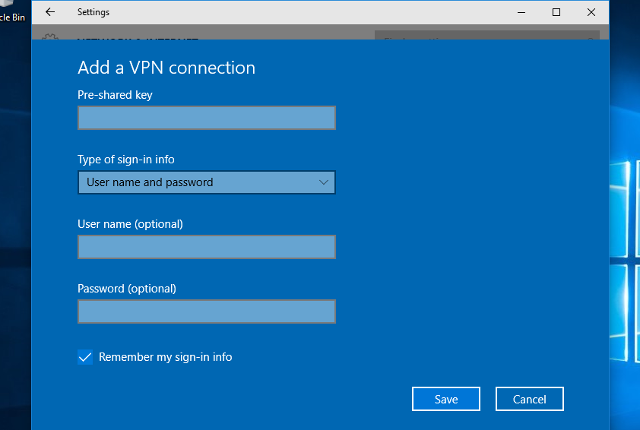

4
Insert accounting data: To complete select Remember my sign-in info and click Save.

Important Note: your VPN username & password is placed in file readme.txt (was sent to your email after ordering the subscription).
Next
a-secure-psk username password Setting up L2TP VPN on Windows 10, step 4 Setting up L2TP VPN on Windows 10, step 4

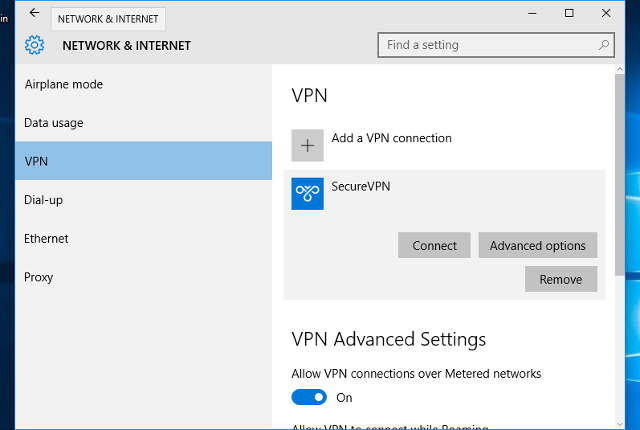

5
To connect select just created configuration and click on Connect.
Next
Setting up L2TP VPN on Windows 10, step 5 Setting up L2TP VPN on Windows 10, step 5

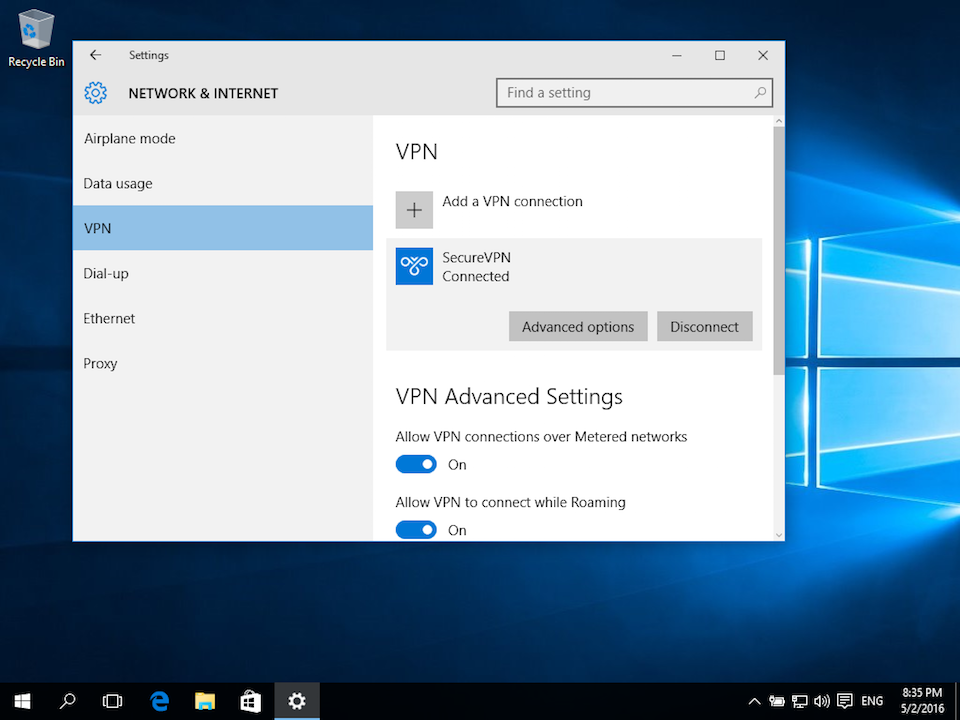

6

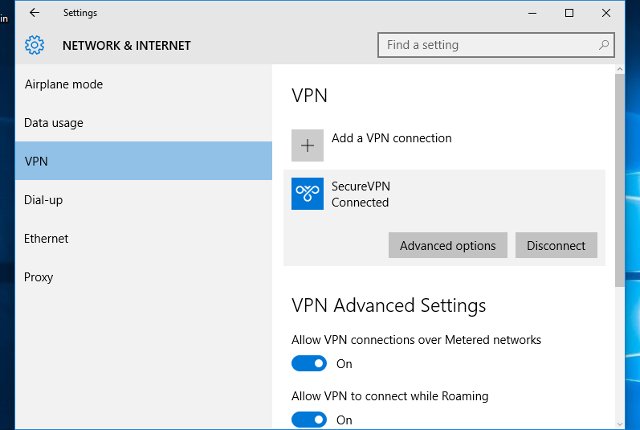

VPN connection will be established in few seconds. To break VPN connection click on Disconnect.
Next
Setting up L2TP VPN on Windows 10, step 6 Setting up L2TP VPN on Windows 10, step 6

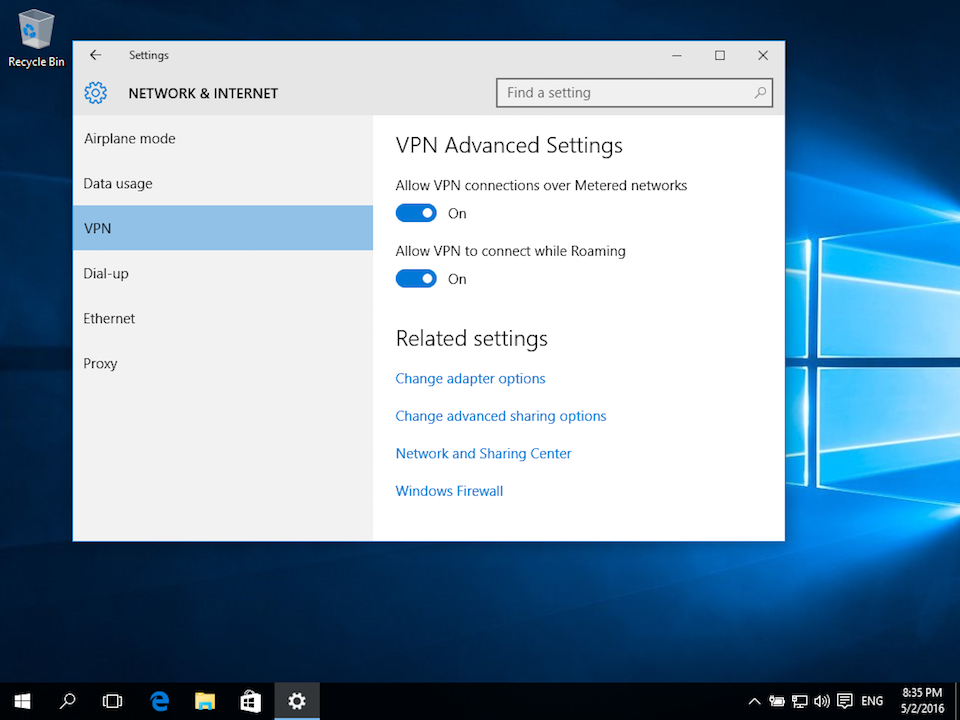

7

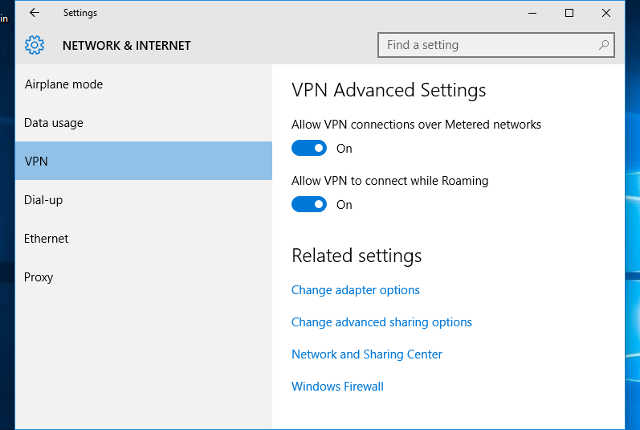

To adjust additional parameters of VPN connection for increased level of security, select Change adapter options.
Next
Setting up L2TP VPN on Windows 10, step 7 Setting up L2TP VPN on Windows 10, step 7

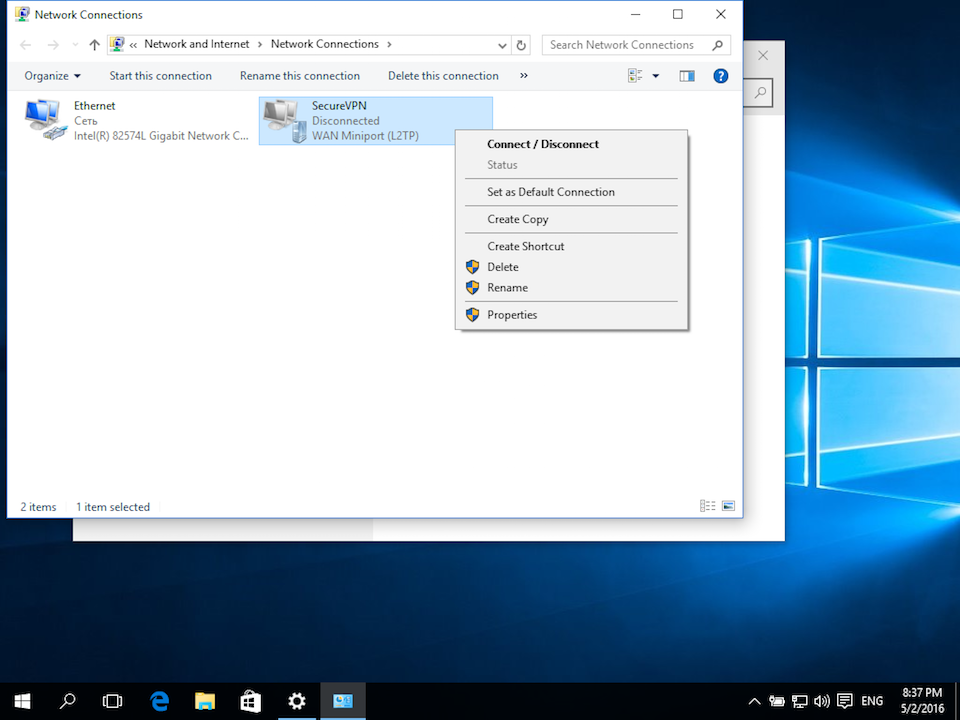

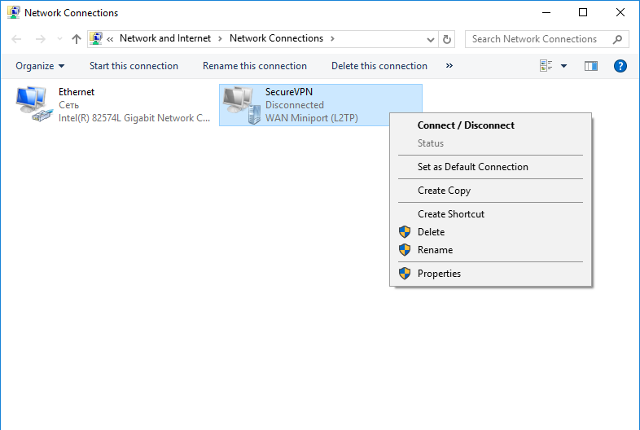

8
In appeared window right click on created connection and to select Properties.
Next
Setting up L2TP VPN on Windows 10, step 8 Setting up L2TP VPN on Windows 10, step 8
9

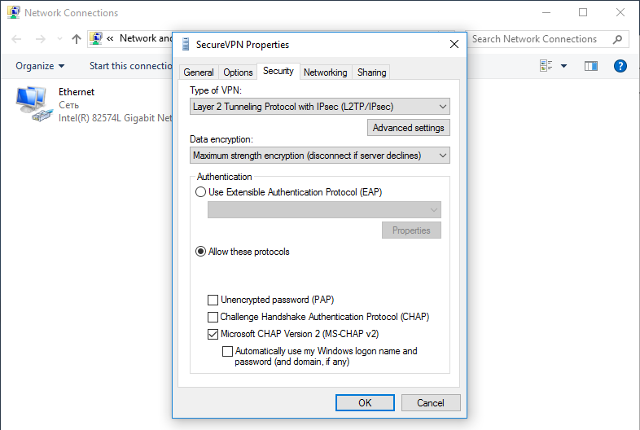

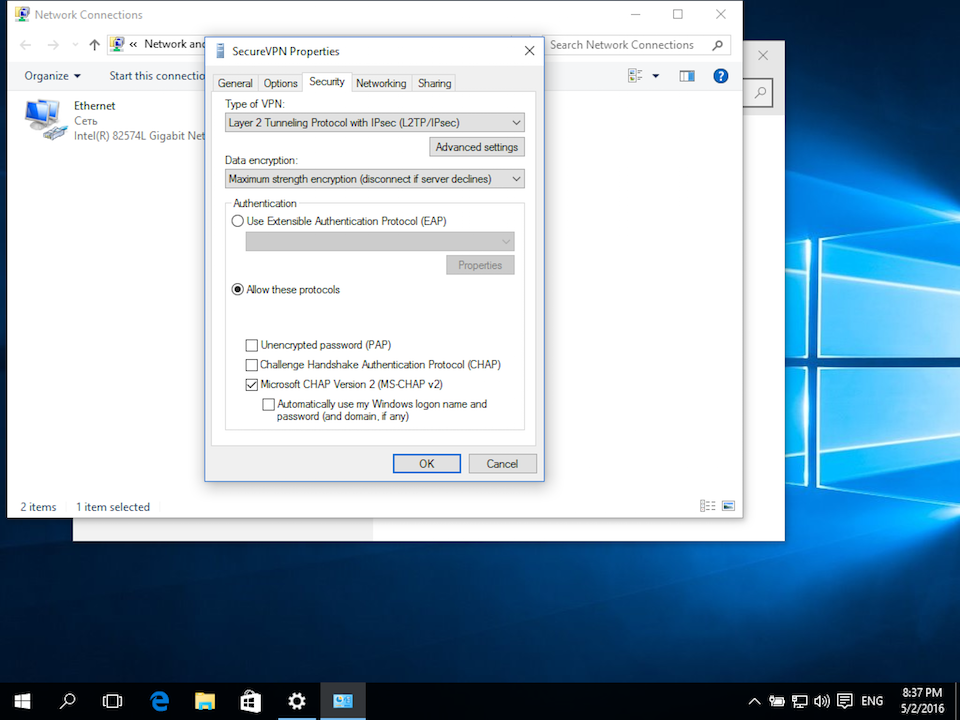

On Security tab to select data encryption type - Maximum strength encryption (disconnect if server declines).
Next
Setting up L2TP VPN on Windows 10, step 9 Setting up L2TP VPN on Windows 10, step 9

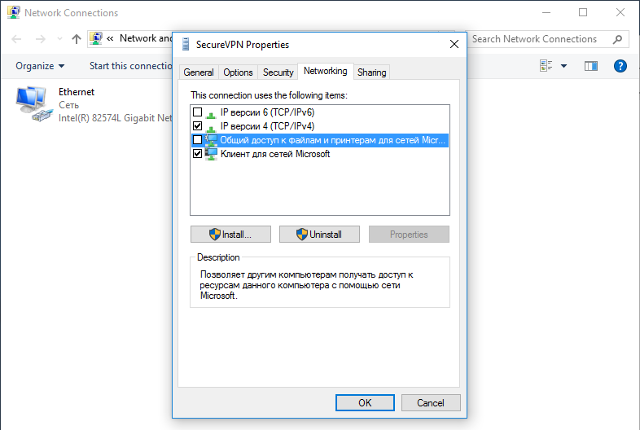

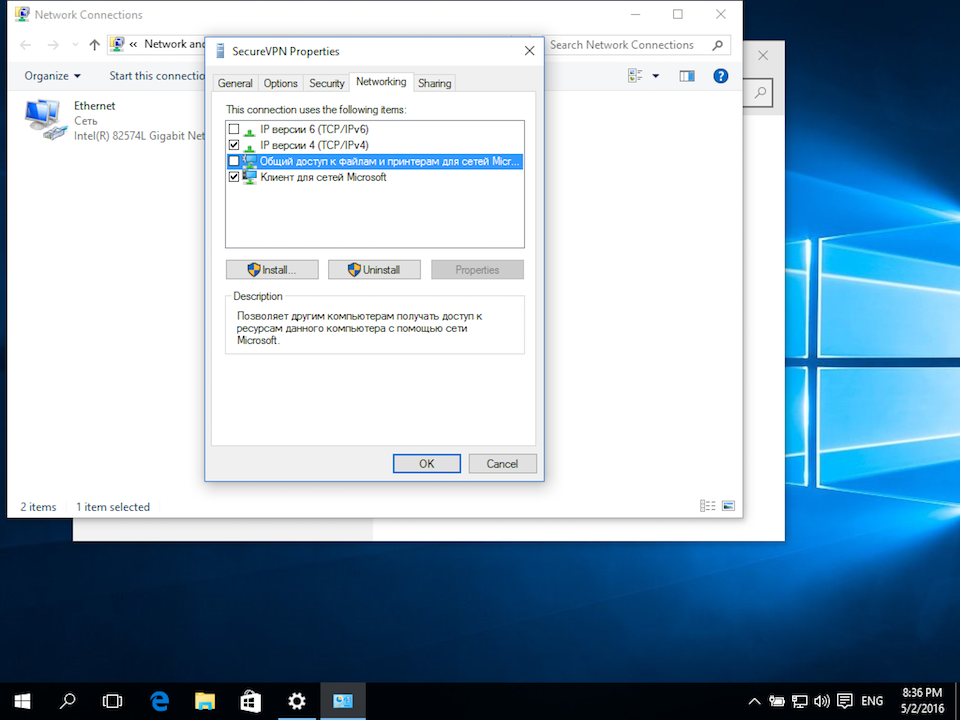

10
On Networking tab uncheck items Internet Protocol version 6 and File and Printer Sharing for Microsoft Networks.
Next
Setting up L2TP VPN on Windows 10, step 10 Setting up L2TP VPN on Windows 10, step 10

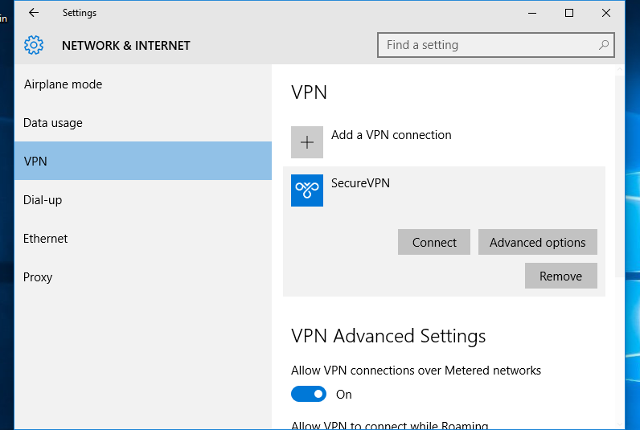

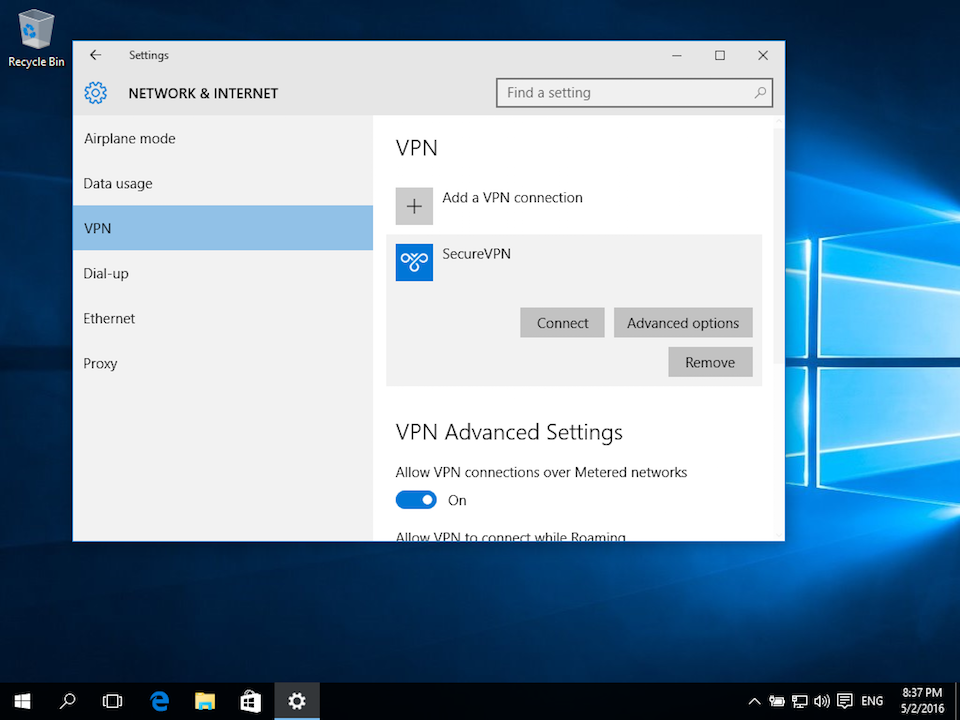

11
To change address of VPN server, select Advanced options.
Next
Setting up L2TP VPN on Windows 10, step 11 Setting up L2TP VPN on Windows 10, step 11

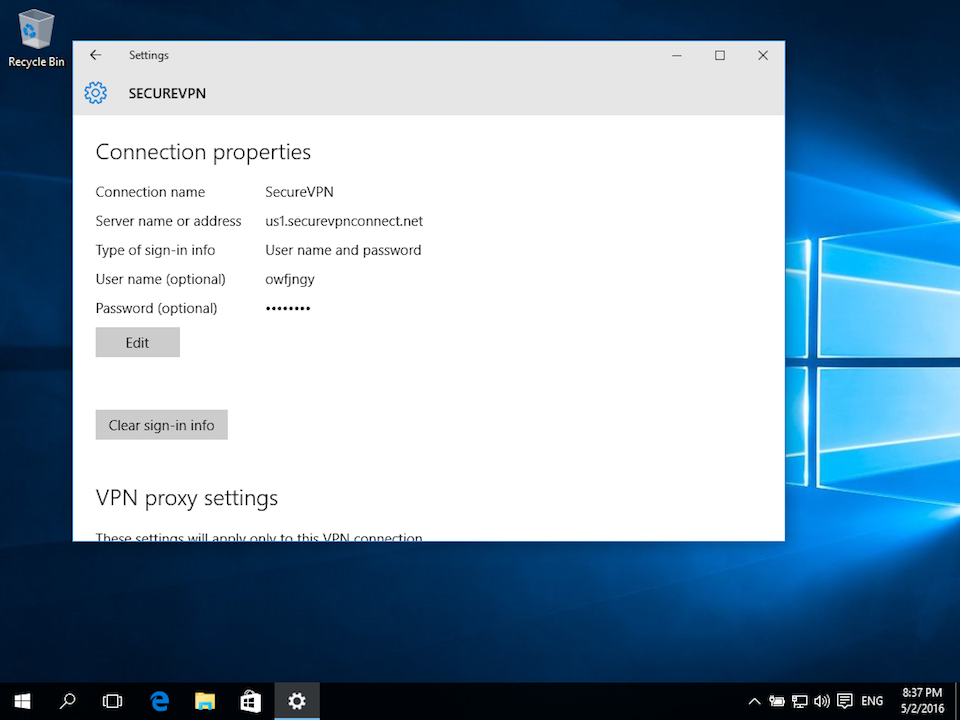

12

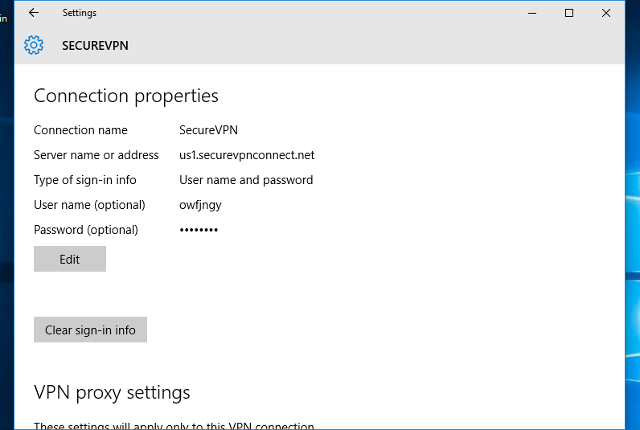

In appeared window click on Edit.
Next
Setting up L2TP VPN on Windows 10, step 12 Setting up L2TP VPN on Windows 10, step 12

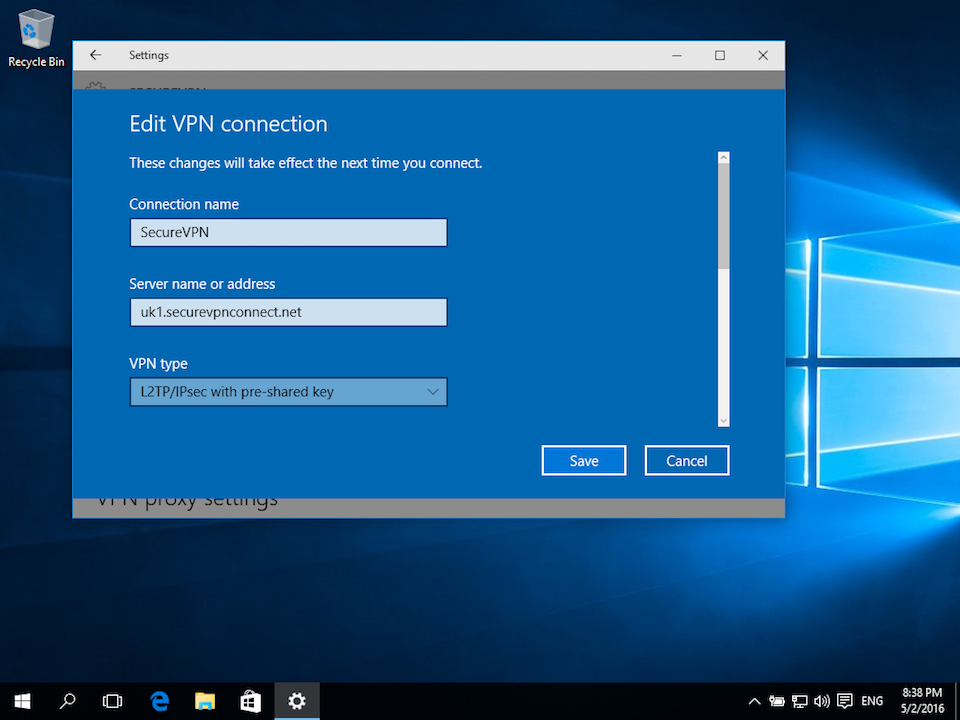

13

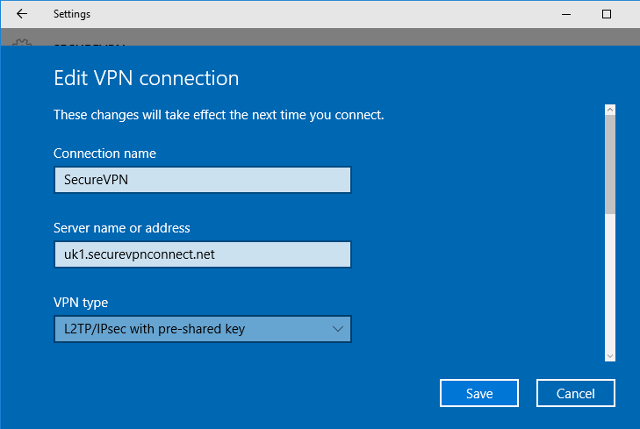

Insert new address of VPN server and click Save.

Our fresh VPN server list is here.
To top
Setting up L2TP VPN on Windows 10, step 13 Setting up L2TP VPN on Windows 10, step 13
